Acoustic sandwich panel

Main Media

    Available dimensions

    Thickness:

    • PVC, HPL, ALU

  • 24 mm
    28 mm
    36 mm
    40 mm
    44 mm
    48 mm

    • Q-Tape

  • 20 mm
    24 mm
    32 mm
    36 mm
    40 mm
    44 mm
    (other variants available on request)

    Available dimensions

    Format:

  • Dependent on the outer layer

    Application

  • Joinery

    door and façade panels with improved sound insulation

  • Construction and architecture

    technical partitions

  • Offices and commercial spaces

    workplace noise reduction

  • Public buildings

    schools, hospitals, hotels, sports facilities

  • Industry and transport

    sound-insulated booths, noise insulation for machinery

Acoustic sandwich panels are a solution dedicated to projects requiring high sound insulation performance. Thanks to the use of a special sound-absorbing core, the panel increases noise resistance up to 36 or 39 dB, depending on the core thickness (8 mm / 16 mm).

Downloads

Product Data Sheet

LB_THERM_TDS_Acoustic-sandwich-panel.pdf

Download

    Key features

  • Noise reduction in rooms and buildings

  • Sound insulation of up to 39 dB

  • Optimum thermal insulation thanks to an XPS core

  • Lightweight compared to traditional sound-absorbing materials

  • UV Resistant

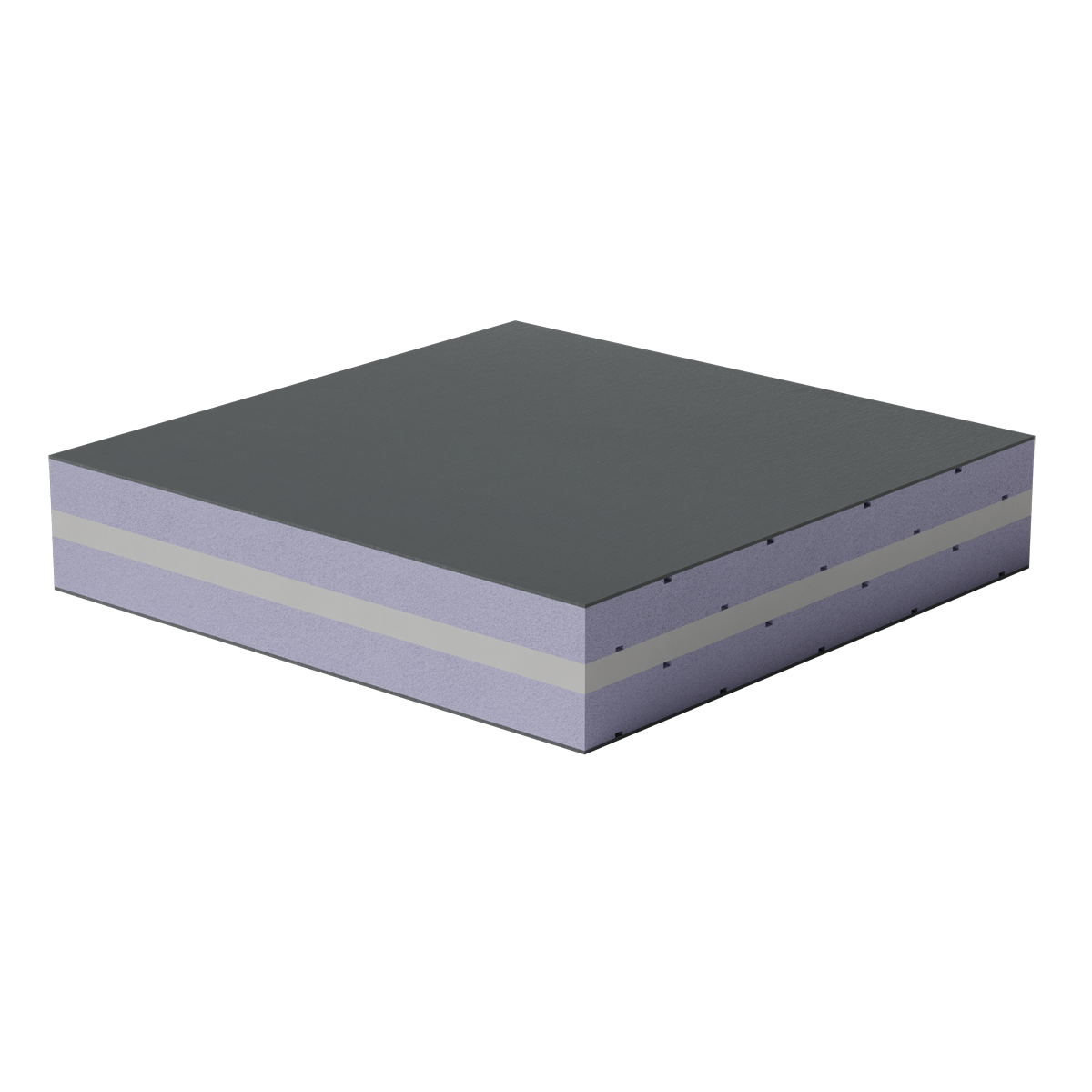

    Design and types of filling

  • Acoustic spacer:

    Special material for increased sound insulation up to Rw 36/39 dB

  • Inner layer:

    XPS/dB/XPS – Extruded polystyrene

TECHNICAL PARAMETERS

Thermal transmittance calculator

Ask about the U-factor

Ask about U

    Available dimensions

    Thickness:

    • PVC, HPL, ALU

  • 24 mm
    28 mm
    36 mm
    40 mm
    44 mm
    48 mm

    • Q-Tape

  • 20 mm
    24 mm
    32 mm
    36 mm
    40 mm
    44 mm
    (other variants available on request)

    Available dimensions

    Format:

  • Dependent on the outer layer

    Application

  • Joinery

    door and façade panels with improved sound insulation

  • Construction and architecture

    technical partitions

  • Offices and commercial spaces

    workplace noise reduction

  • Public buildings

    schools, hospitals, hotels, sports facilities

  • Industry and transport

    sound-insulated booths, noise insulation for machinery

Choose silence and comfort! Contact us to find your perfect solution.
